Tips for Reverse-Engineering Malicious Code

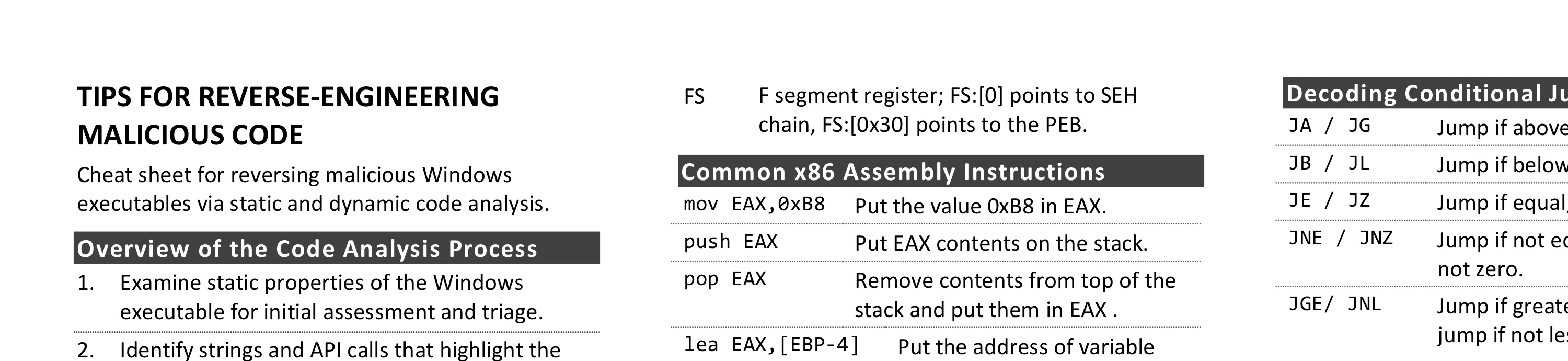

This cheat sheet outlines tips for reversing malicious Windows executables via static and dynamic code analysis with the help of a debugger and a disassembler. To print it, use the one-page PDF version; you can also edit the Word version to customize it for you own needs.

Overview of the Code Analysis Process

  1. Examine static properties of the Windows executable for initial assessment and triage.
  2. Identify strings and API calls that highlight the program’s suspicious or malicious capabilities.
  3. Perform automated and manual behavioral analysis to gather additional details.
  4. If relevant, supplement our understanding by using memory forensics techniques.
  5. Use a disassembler for static analysis to examine code that references risky strings and API calls.
  6. Use a debugger for dynamic analysis to examine how risky strings and API calls are used.
  7. If appropriate, unpack the code and its artifacts.
  8. As your understanding of the code increases, add comments, labels; rename functions, variables.
  9. Progress to examine the code that references or depends upon the code you’ve already analyzed.
  10. Repeat steps 5-9 above as necessary (the order may vary) until analysis objectives are met.

Common 32-Bit Registers and Uses

EAXAddition, multiplication, function results
ECXCounter; used by LOOP and others
EBPBaseline/frame pointer for referencing function arguments (EBP+value) and local variables (EBP-value)
ESPPoints to the current “top” of the stack; changes via PUSH, POP, and others
EIPInstruction pointer; points to the next instruction; shellcode gets it via call/pop
EFLAGSContains flags that store outcomes of computations (e.g., Zero and Carry flags)
FSF segment register; FS[0] points to SEH chain, FS[0x30] points to the PEB.

Common x86 Assembly Instructions

mov EAX,0xB8Put the value 0xB8 in EAX.
push EAXPut EAX contents on the stack.
pop EAXRemove contents from top of the stack and put them in EAX .
lea EAX,[EBP-4]Put the address of variable EBP-4 in EAX.
call EAXCall the function whose address resides in the EAX register.
add esp,8Increase ESP by 8 to shrink the stack by two 4-byte arguments.
sub esp,0x54Shift ESP by 0x54 to make room on the stack for local variable(s).
xor EAX,EAXSet EAX contents to zero.
test EAX,EAXCheck whether EAX contains zero, set the appropriate EFLAGS bits.
cmp EAX,0xB8Compare EAX to 0xB8, set the appropriate EFLAGS bits.

Understanding 64-Bit Registers

  • EAX→RAX, ECX→RCX, EBX→RBX, ESP→RSP, EIP→RIP
  • Additional 64-bit registers are R8-R15.
  • RSP is often used to access stack arguments and local variables, instead of EBP.
  • |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| R8 (64 bits)
    ________________________________|||||||||||||||||||||||||||||||| R8D (32 bits)
    ________________________________________________|||||||||||||||| R8W (16 bits)
    ________________________________________________________|||||||| R8B (8 bits)

Passing Parameters to Functions

arg0[EBP+8] on 32-bit, RCX on 64-bit
arg1[EBP+0xC] on 32-bit, RDX on 64-bit
arg2[EBP+0x10] on 32-bit, R8 on 64-bit
arg3[EBP+14] on 32-bit, R9 on 64-bit

Decoding Conditional Jumps

JA / JGJump if above/jump if greater.
JB / JLJump if below/jump if less.
JE / JZJump if equal; same as jump if zero.
JNE / JNZJump if not equal; same as jump if not zero.
JGE/ JNLJump if greater or equal; same as jump if not less.

Some Risky Windows API Calls

  • Code injection: CreateRemoteThread, OpenProcess, VirtualAllocEx, WriteProcessMemory, EnumProcesses
  • Dynamic DLL loading: LoadLibrary, GetProcAddress
  • Memory scraping: CreateToolhelp32Snapshot, OpenProcess, ReadProcessMemory, EnumProcesses
  • Data stealing: GetClipboardData, GetWindowText
  • Keylogging: GetAsyncKeyState, SetWindowsHookEx
  • Embedded resources: FindResource, LockResource
  • Unpacking/self-injection: VirtualAlloc, VirtualProtect
  • Query artifacts: CreateMutex, CreateFile, FindWindow, GetModuleHandle, RegOpenKeyEx
  • Execute a program: WinExec, ShellExecute, CreateProcess
  • Web interactions: InternetOpen, HttpOpenRequest, HttpSendRequest, InternetReadFile

Additional Code Analysis Tips

  • Be patient but persistent; focus on small, manageable code areas and expand from there.
  • Use dynamic code analysis (debugging) for code that’s too difficult to understand statically.
  • Look at jumps and calls to assess how the specimen flows from “interesting” code block to the other.
  • If code analysis is taking too long, consider whether behavioral or memory analysis will achieve the goals.
  • When looking for API calls, know the official API names and the associated native APIs (Nt, Zw, Rtl).

Post-Scriptum

Authored by Lenny Zeltser with feedback from Anuj Soni. Malicious code analysis and related topics are covered in the SANS Institute course FOR610: Reverse-Engineering Malware, which they’ve co-authored. This cheat sheet, version 1.0, is released under the Creative Commons v3 “Attribution” License.
